aja::Item Class Reference

This is basic class for all items classes. More...

#include <Item.h>

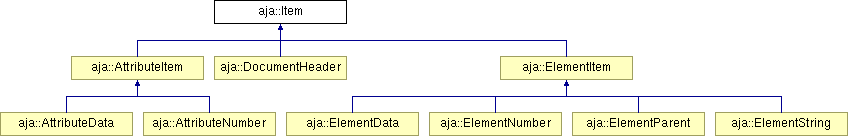

Inheritance diagram for aja::Item:

List of all members.

Public Member Functions
	Item ()
	construct a item
	Item (itemType_t type)
	construct a item with current type
virtual	~Item ()
	destructor of item
itemType_t	getItemType ()
	Function return a type of item.
Item *	getParent ()
	Function return parent of item.
void	setParent (Item *parent)
	Function set parent for this item.
virtual number_t	getItemSize ()=0
	This function return complete size of item in bytes.
virtual bool	buildAja (OutputBuffer &out)=0
	This function build binary AJA form of item.
Protected Attributes
itemType_t	mItemType
	member contain information about item type
Item *	mParent
	pointer to parent item in hierarchy tree

---

Detailed Description

This is basic class for all items classes.

Class contain pointer to parent item and method for checking about element type.This class do nothing but from this class are ingerited other classes like ElementItem, AttributeItem or CommentItem.

See also:

aja::itemType_t

---

Constructor & Destructor Documentation

aja::Item::Item (   )

construct a item

aja::Item::Item (  itemType_t  type  )

construct a item with current type Parameters: type  one of item types can be ITM_ELEMENT etc..

aja::Item::~Item (   )  [virtual]

destructor of item

---

Member Function Documentation

virtual bool aja::Item::buildAja (  OutputBuffer &  out  )  [pure virtual]

This function build binary AJA form of item. Every AJA item have in this function implemented his own binary-build code.Building is realized into OutputBuffer.In the end is in OutputBuffer complete builded binary form of item. Parameters: out  Into this class is written AJA binary result of building process. Returns: true id ok, false when error was occurred Implemented in aja::AttributeData, aja::AttributeItem, aja::AttributeNumber, aja::DocumentHeader, aja::ElementData, aja::ElementItem, aja::ElementNumber, aja::ElementParent, and aja::ElementString.

virtual number_t aja::Item::getItemSize (   )  [pure virtual]

This function return complete size of item in bytes. It is calculation of header size + data size. This function is abstract and every item type compute size by yourself. Computing code is situated in classes inherited from this Item class(like ElemenItem etc.) Returns: size of item in bytes Implemented in aja::AttributeData, aja::AttributeItem, aja::AttributeNumber, aja::DocumentHeader, aja::ElementData, aja::ElementItem, aja::ElementNumber, aja::ElementParent, and aja::ElementString.

itemType_t aja::Item::getItemType (   )

Function return a type of item. Returns: type of item, one of itemType_t enumeration

Item * aja::Item::getParent (   )

Function return parent of item. Returns: pointer to item.Item is parent of this item Reimplemented in aja::ElementItem.

void aja::Item::setParent (  Item *  parent  )

Function set parent for this item. Parameters: parent  pointer to item who have been set like parent

---

Member Data Documentation

itemType_t aja::Item::mItemType [protected]

member contain information about item type

Item* aja::Item::mParent [protected]

pointer to parent item in hierarchy tree Reimplemented in aja::ElementItem.

---

The documentation for this class was generated from the following files:

• /home/sn3d/devel/aja-ml/aja-lib/src/Item.h
• /home/sn3d/devel/aja-ml/aja-lib/src/Item.cpp

---
